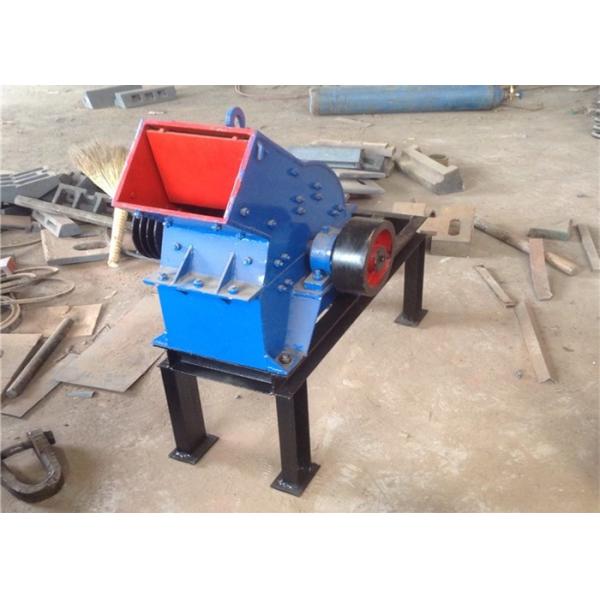

Hammer Crusher, Hammer Mill, Stone Crusher
1. The function of Hammer Crusher:
The series of products have the features of small volume ,light
weight ,simple structure ,easy operation and maintenance ,high
ratio of crushing ,too little crush , even product size ,high
producing capacity .They are suitable for crushing all the
materials of brittle,medium hard ,and compressive strength 150
Mpa.The features include great hammerhead work ,adoption of new
technology casting ,with wear and impact resistance. This solve the
problems of crushing plant dust pollution and gray body leakage.
2.The features of Hammer Crusher:
Hammer Crusher adopts new technology .
Adjusting grain size to cater for customers’need .
Seal body structure solved the problems of crushing plant dust
pollution and gray body leakage .
The overall design has attractive appearance,compact structure
,less easy damaged parts ,convenient maintenance.
3.The specifications of Hammer Crusher:
Model | Inlet Size (mm) | Diacharging Size (mm) | Capacity (t/h) | Power (kw) | Size (m) | Weight (t) |
PC200X300 | ≤100 | ≤10 | 3.0-5 | 7.5 | 0.8×0.5×0.8 | 0.5 |
PC400x300 | ≤100 | ≤10 | 5.0-10 | 11 | 0.9x0.6x0.8 | 0.8 |
PC600x400 | ≤120 | ≤15 | 10.0-25 | 18.5 | 1.2x1.05x1.2 | 1.5 |
PC800X600 | ≤120 | ≤15 | 20-35 | 55 | 1.3×1.2×1.3 | 3.1 |
PC800X800 | ≤160 | ≤13 | 20-30 | 95 | 1.5x1.08x1.25 | 3.5 |
PC1000X800 | ≤200 | ≤13 | 20-40 | 115 | 1.6×1.4×1.6 | 7.9 |
PC1000X1000 | ≤200 | ≤15 | 30-80 | 132 | 1.8×1.6×1.8 | 8.5 |
PC1300X1200 | ≤250 | ≤19 | 80-200 | 240 | 2.1×1.6×1.9 | 13.5 |
4. Hammer Crusher structure chart and working principles:
The motor drives the rotor rotate the hammer crusher with high
speed through the belt, and on the rotor there are a series of
hammers. When the materials get into the working area of hammers,
they are crushed by the rotating hammers of the hammer crusher with
high rotation speed, the products which are crushed to meet the
required size can be discharged by the outlet and become the final
products, the large size products are brought back to the crushed
area by the hammers of the hammer crusher for being recrushed until
they reached the required size. This machine can be adjusted
according to user space grate section, change the particle size, to
meet the different needs of different users.
