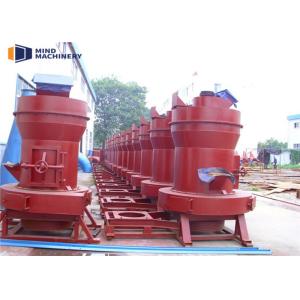

Soapstone Raymond Grinding Mill Machine Energy Saving 0.8-2.5 T/H
Capacity
Parameters of Raymond Mill:
| Model | Grinding Roller | Mill Roll Size | Size and Height of Grinding Ring | Max. Inlet Size | Discharging Size | CapacitY | Power | Weight | Size |
| PCs | (R×H)mm | (mm) | (mm) | (mm) | (t/h) | (KW) | (t) | (mm) |
| 3R1510 | 3 | 210×150 | 650×150 | 15 | 0.2-0.044 | 0.4-1.8 | 15 | 3.8 | 4100*3300*4500 |
| 3R2615 | 3 | 260×150 | 780×150 | 15 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 | 5650*3305*5950 |
| 3R2715 | 3 | 270×150 | 830×150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 | 5600*3400*5900 |
| 3R3016 | 3 | 300×160 | 880×160 | 20 | 0.2-0.044 | 1.2-3.2 | 30 | 6 | 5600*4100*5200 |
Product Descriptions:
1. Grinder type: Ultrafine Mill
2. Application area: micron powder producing.
3. Grinding material: middle and low hardness, moisture below 6%,
and the material should be non-explosive and non-flammable, such
as: calcite, chalk, limestone, dolomite, kaolin, bentonite,
steatite, mica, magnetite, iolite, pyrophillite, vermiculite,
meerschaum, attapulgite, diatomite, barite, gypsum, alunite,
graphite, fluorite, phosphate ore, potassium ore pumice, etc.
4. Capacity: 0.5-25t/h (can be customized)
5. Max feeding size: 20mm (can be customized)
6. Final size (mesh): 325-2500(can be customized)
Structural Features:
The structure of the Raymond mill is mainly composed of a main
machine, an analyzer, a fan, a finished cyclone separator, a fine
powder cyclone separator and a duct. Among them, the main body is
composed of a frame, an inlet volute, a blade, a grinding roller, a
grinding ring and a cover.
Raymond Mill Repair and Maintenance:
1. During the application of our raymond grinding mill, some
personnel shall be arranged to take responsibility of management
from beginning to end. The operators must be qualified with the
required technical knowledge of opreating grinding mills. Before
the installation of this grinding mill, the persons related to the
operation should receive technical training and fully understand
the operating principle, performance and regulations of the raymond
mill.
2. In order to guarantee the raymond mill in a normal working
state, a Safety Operation System for the Maintenance of the
equipment must be established. Only in this way can the raymond
mill be guaranteed to have a long-term and safe operation.
Meanwhile, it is necessary to have the required repairing tools,
lubricant and grease, spare parts and accessories during the
operation.
3. After some period of running, the raymond mill should receive an
examination and repairing. The components vulnerable to worn out,
such as grinding roller, grinding ring, relieving tool etc. should
be repaired or replaced. Before and after the operation, a careful
examination should be carried out for the connecting screws, bolts
and nuts on the grinding rollers so as to find whether they are
loose or sufficiently lubricated.
4. When their application time surpassing about 500 hours, all the
rolling bearings in the roller sleeves of raymond mill must be
cleaned, and the damaged parts should be replaced. The oiling tool
can be either a manual oiling pump or grease gun.
